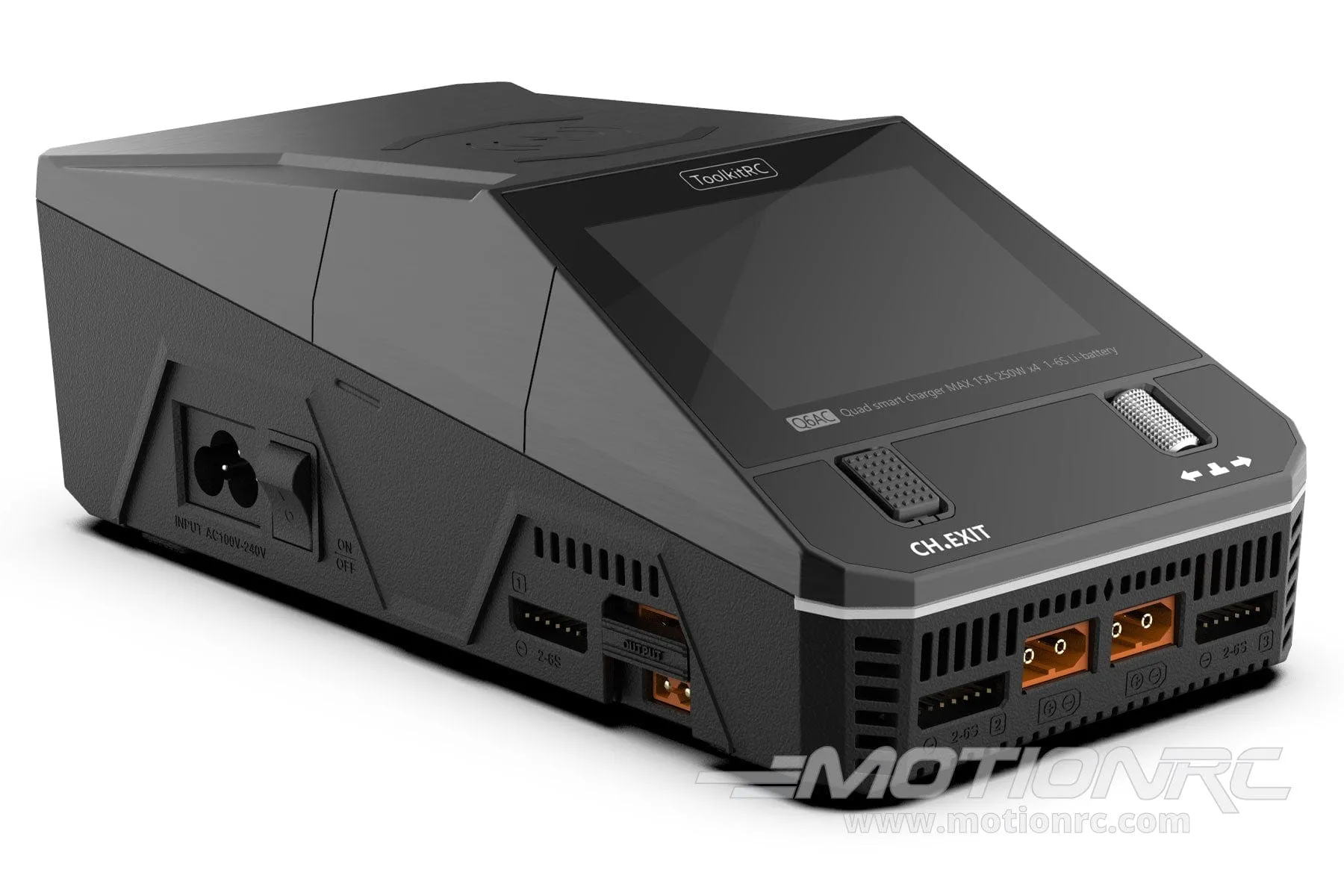

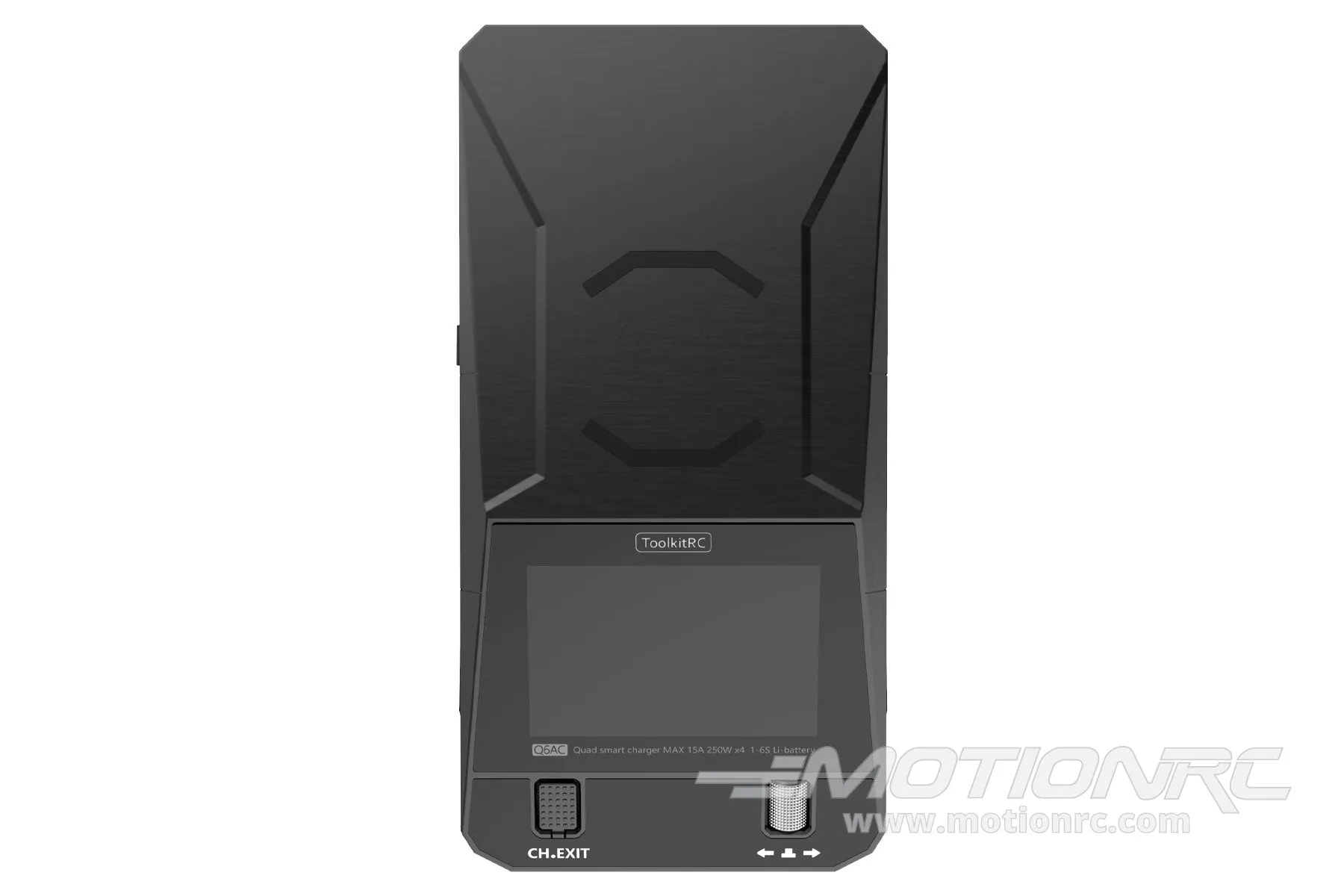

＋Q6AC 1000W 6 Cell (6S) Quad Port LiPo AC/DC Battery Charger from ToolkitRC - TK12900
The ToolkitRC Q6AC is a powerful and versatile quad channel AC/DC charger that takes the hassle out of charging your batteries. With four independent charging channels, you can charge up to four different battery packs simultaneously. The Q6AC features a large 3.5" IPS LCD display that provides full details on each charging channel and supports a wide range of battery chemistries including LiPo, LiHV, LiFe, LiIon, LTO, NiMH, and Pb. Its 1000W maximum power rating can handle even your most power-hungry applications, while the advanced cooling system keeps the Q6AC running efficiently. Dual AC and DC power inputs provide flexible power options, and the included wireless charging pad is a convenient bonus. The intuitive user interface makes the Q6AC a must-have for any electric-powered hobby enthusiast.
Note: We recommend reading this about charger amperage and wattage ratings.
|

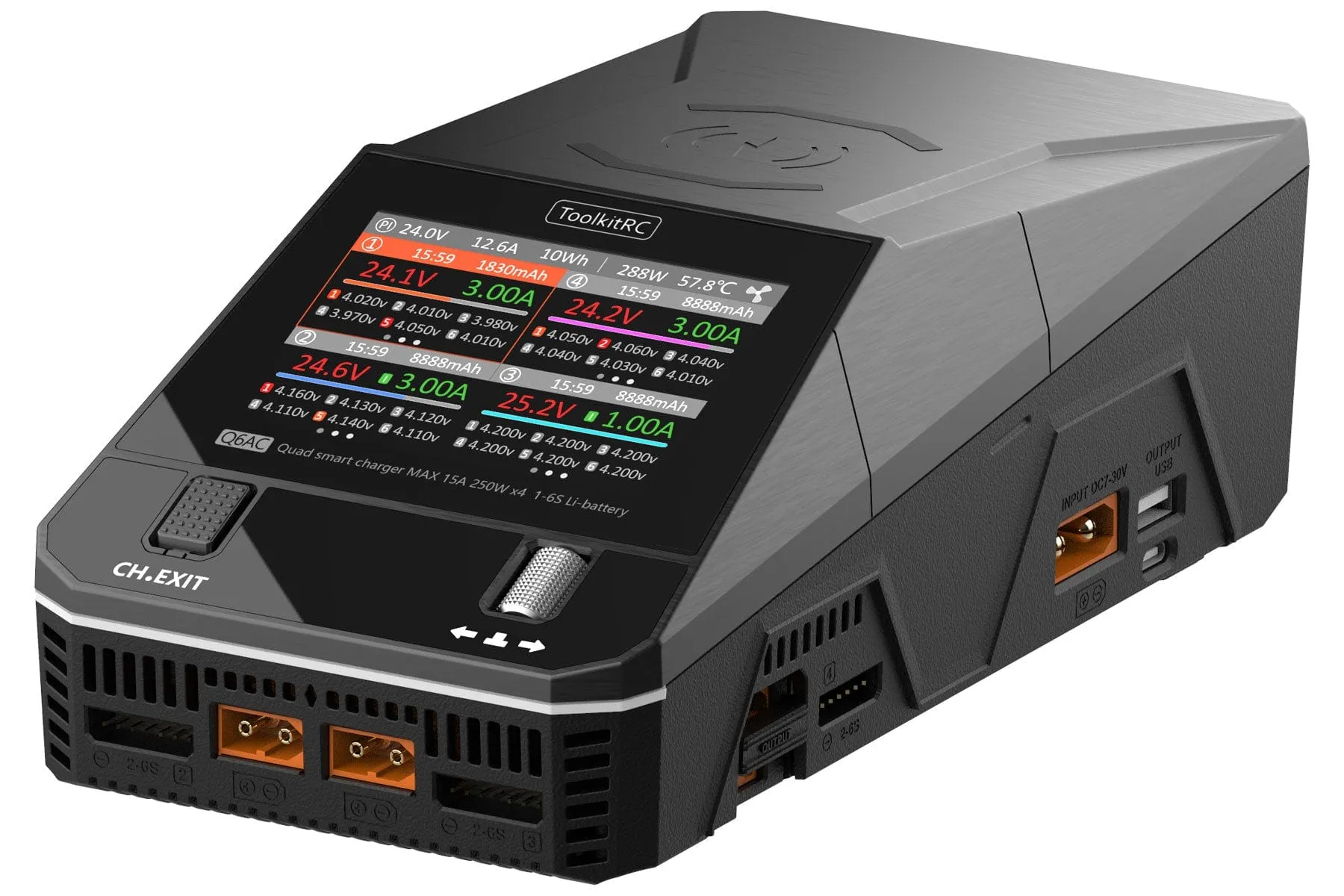

Vibrant Color Display and Graphical UI The bright, colorful, IPS display gives you all the info you need via an easy-to-use interface. |
|
Quad Channel Output Charge four batteries simultaneously with up to 1000W charging power. |
|

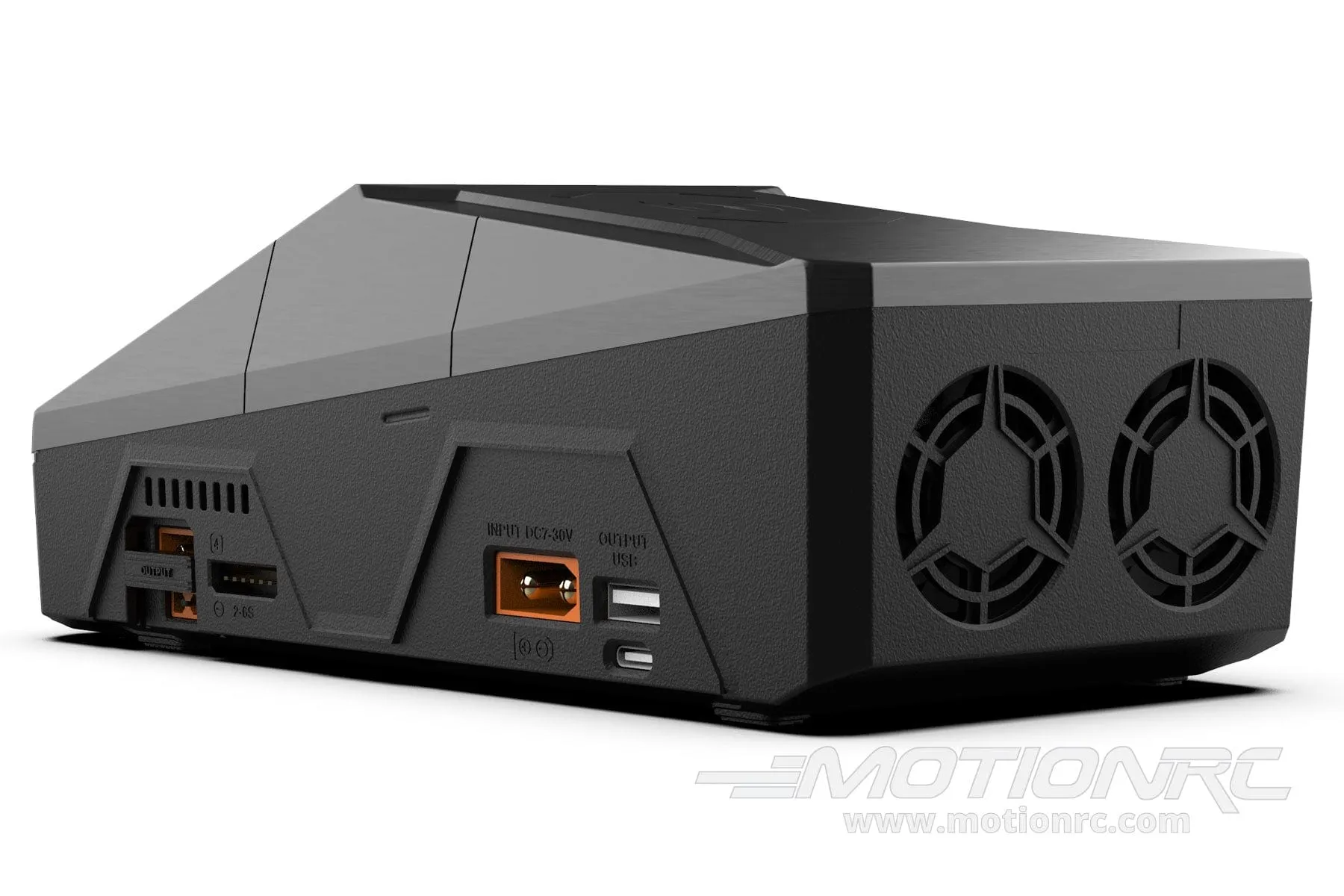

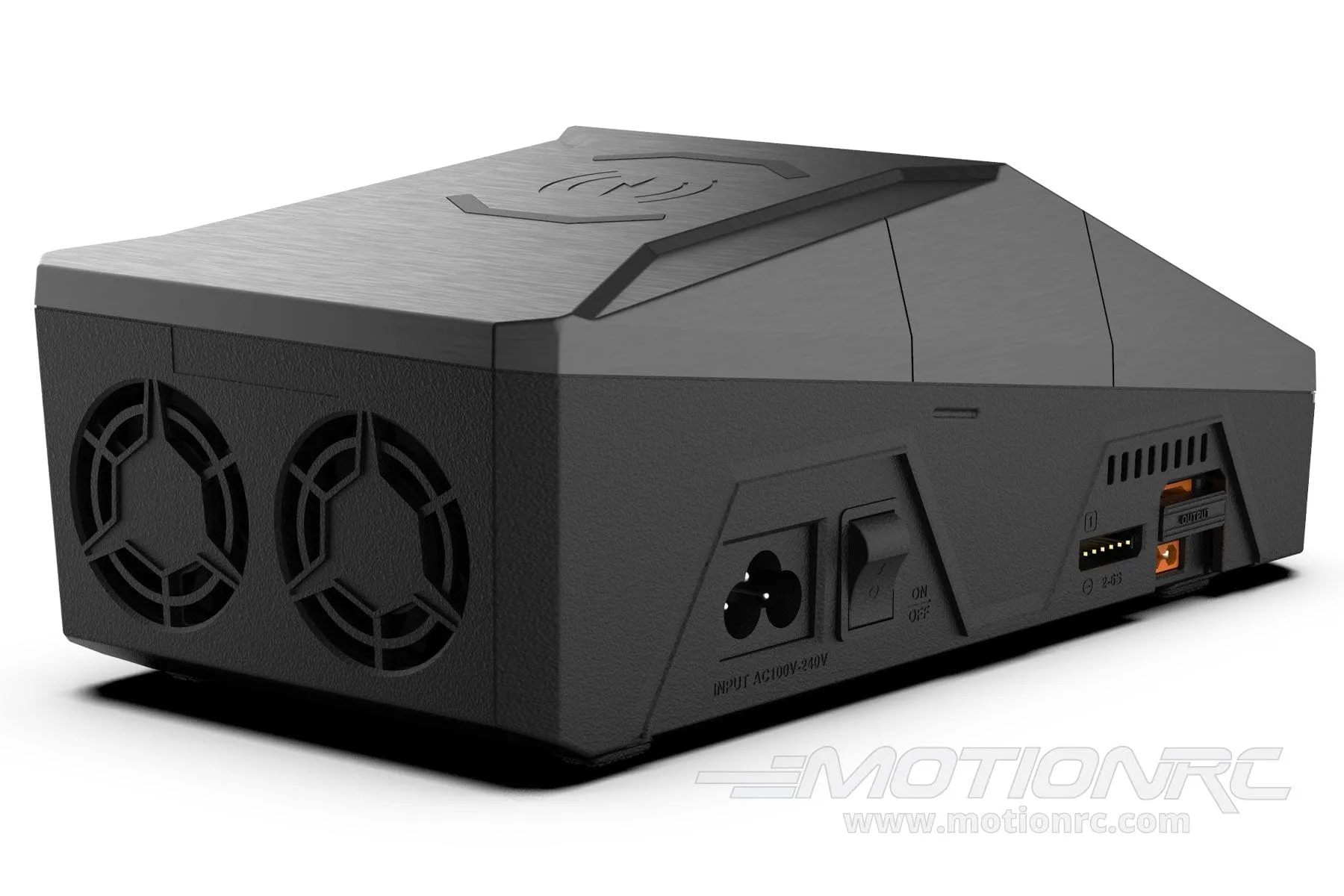

AC/DC Dual Input With the internal 400W AC power supply and up to 1000W DC via the XT90 input plug, you’ll never be short on power options. |
|
Wireless Charging Wireless charging support for your mobile devices. |
|
USB-C Fast Charging Support for up to 65W fast charging via USB-C to power all your portable devices. |
|

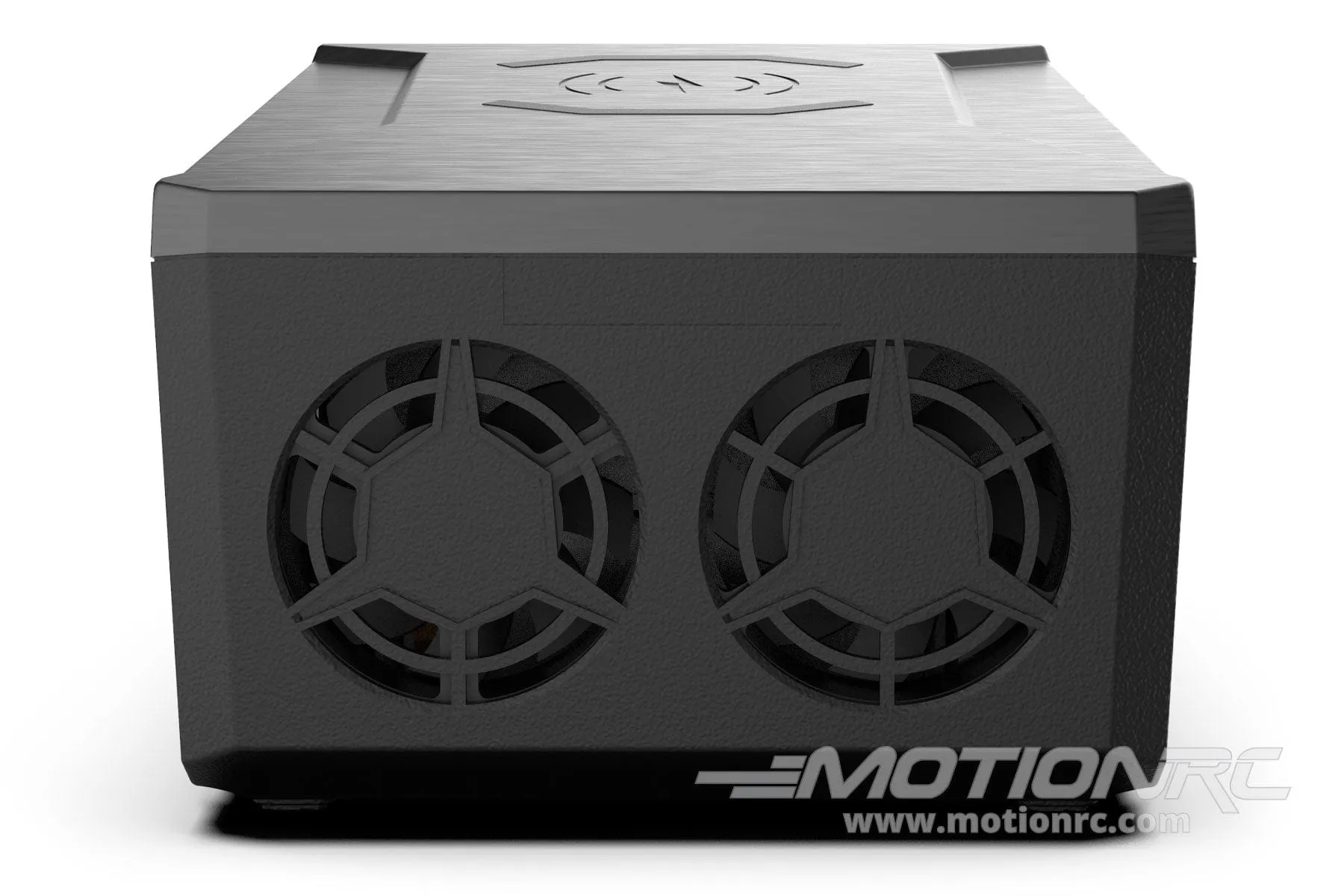

Dual Fans Efficient cooling and low noise from the automatically controlled cooling system. |
Features:
- 4 independent charging channels
- AC/DC dual input mode — can be powered by AC (up to 400W) or DC (up to 1000W with XT90 input)
- Multi-protocol wireless charging
- USB-C fast charging up to 65W
- Quad smart charger with max 15A per channel
- Advanced automated cooling based on real-time heat demand
- Supports LiPo, LiHV, LiFe, LiIon, LTO, NiMH, Pb batteries
- One-touch intuitive UI design with full channel details
- Compatible with XT60 and XT30 connectors directly (other plug types can be used with adapters/charge leads)
Includes:
- ToolkitRC Q6AC 1000W 6 Cell (6S) Quad Port LiPo AC/DC Battery Charger
- AC power cord
- XT90 DC input cable
- USB cable
- User Manual
Never, under ANY circumstances, leave your charger unattended while charging a LiPo battery. Keep the charger away from moisture, dust, direct sunlight, or any heat sources. The charger should always be placed on a heat-resistant, non-flammable surface during charging. Never overcharge or exceed a 1C charge current. A 1C charge current means the charge current equals the capacity of the battery. For example, a 2200mAh battery should never be charged using a current greater than 2.2 Amps (2200mAh).
